Description
x- Excellent performance in low-light environments.

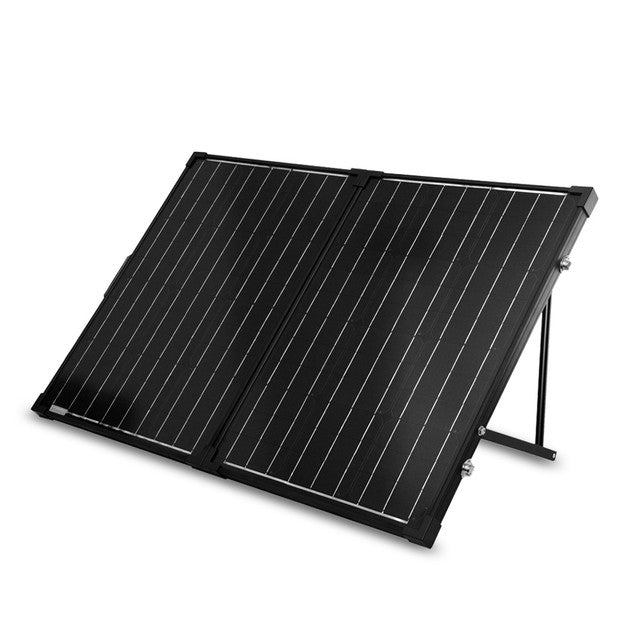

- Adjustable, corrosion resistant aluminum stand for maximum solar light capture.Protective casing included.
- Designed for expansion, you can add panels to the the system for more power based on available space.
BUILT-IN COMPONENTS
Junction Box: One single hole and one double hole junction box
Cell Type: 158 monocrystalline
Number of Cells: 72(3*12*2)
opc:
SPECIFICATIONS
Maximum Power at STC: 100W
Cell Efficiency: 22%
Optimum Operating Voltage (Vmp): 20.3V
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Current (Imp): 2x2.47A
Short-Circuit Current (Isc): 2 x 2.73A
Operating Temperature: 40°F to 185°F
Maximum Series Fuse Rating: 20A
Maximum System Voltage: 600VCD(UL)
Weight: 9.3kg /20.5lbs
Maximum AWG Size Range (MC4): 30A
Dimensions: 630x509x70 mm/24.8x20x2.8 in
Material and workmanship warranty: 3 years
Performance Warranty: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
