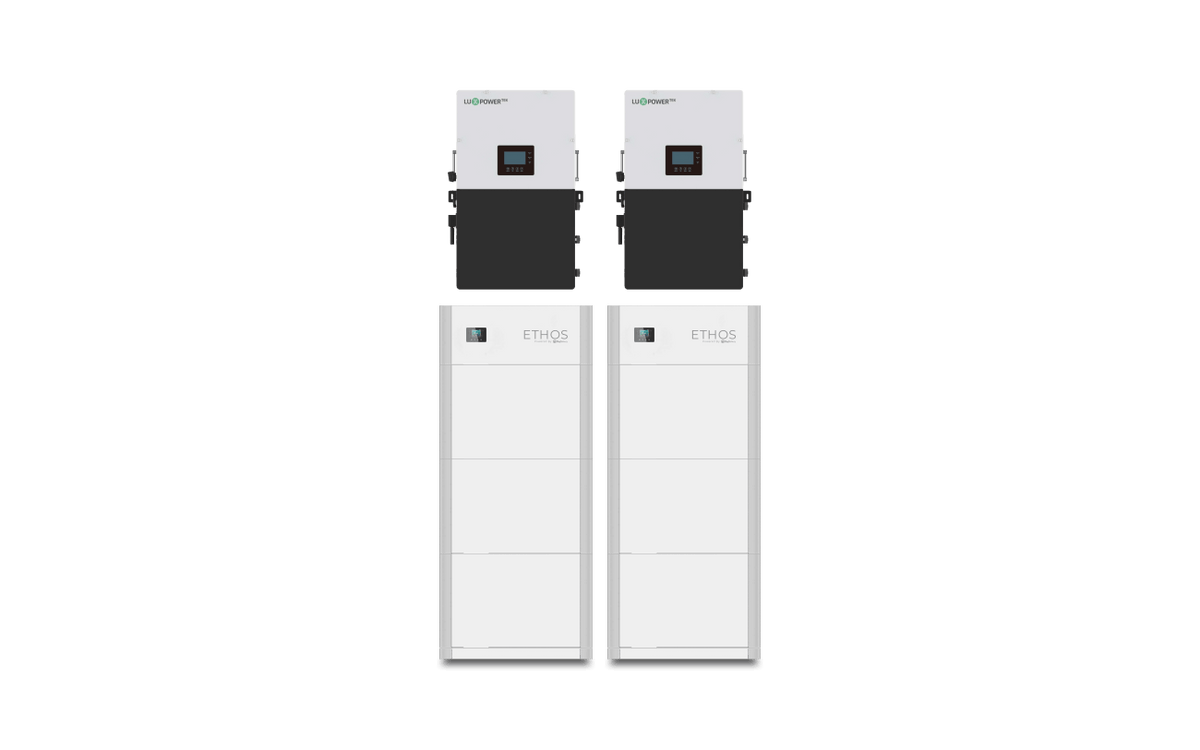

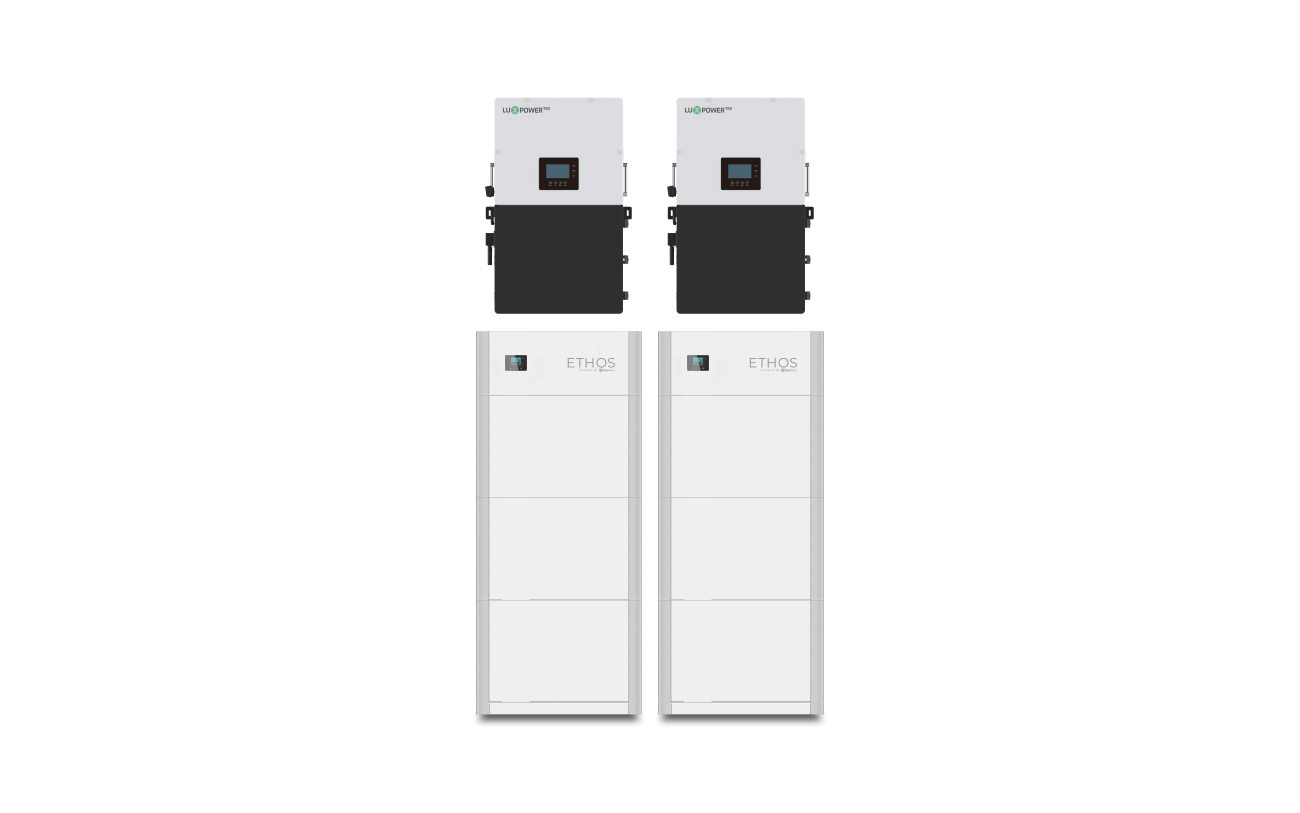

Introducing the 48V 30.7kWh ETHOS Power System – Your Ultimate Energy Solution
Meet the 48V 30.7kWh ETHOS Power System, the pinnacle of energy storage and management. This cutting-edge power system is engineered to provide you with unmatched energy capacity and efficiency, ensuring you have the power you need when you need it.
Key Features:
- Remarkable Capacity: Boasting an impressive 30.7kWh capacity, the ETHOS Power System offers an abundance of energy for your diverse needs.
- Unparalleled Efficiency: Experience cost savings and optimized energy utilization through its superior efficiency.
- Unwavering Reliability: Depend on continuous power supply, even in the face of blackouts, to keep your essential devices running.
- Environmentally Conscious: Make a positive impact on the environment by reducing your reliance on non-renewable energy sources.
- User-Centric Design: Navigate your energy consumption effortlessly with an intuitive interface designed for user convenience.
Elevate your energy infrastructure with the 48V 30.7kWh ETHOS Power System and enjoy the ultimate in sustainable, reliable, and user-friendly energy solutions.

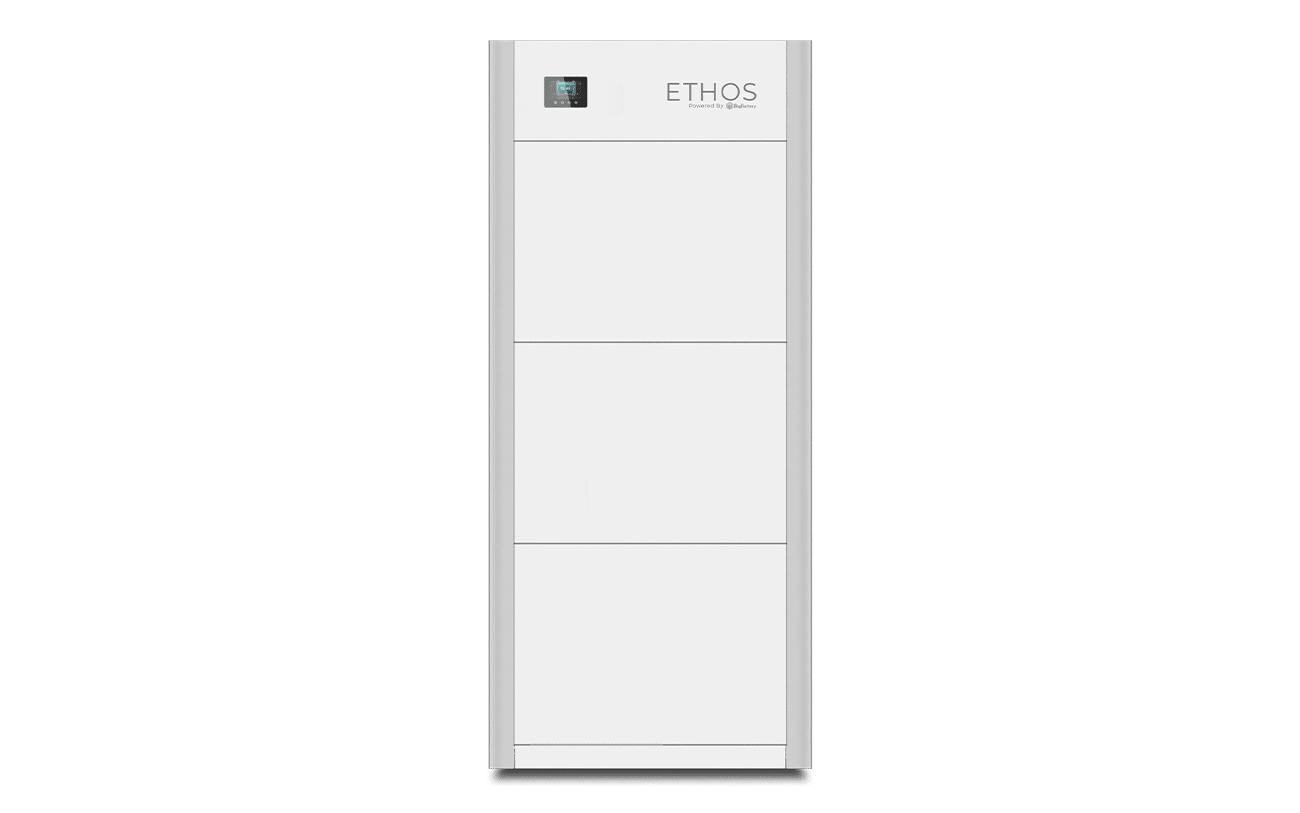

Single Stack Technical Specs
SKU: | KIT0959 |
System Voltage: | 48V |
Nominal Voltage: | 51.2V |
Chemistry: | LiFePO4 |
kWh Capacity: | 15.36kWh |
Ah Capacity: | 300Ah |
Charging Voltage Range: | 55.6 - 57V |
Max Charge Voltage: | 57V |
Operating Voltage Range: | 48 – 57V |
Suggested Low Voltage Cutoff: | 48 – 50.8V |
BMS Cutoff Range: | 42 - 47V |
Cell Configuration: | 16S 3P |
Max Continuous Discharge Current: | 250A |
Max Continuous Power: | 12800W |
Max Discharge Peak Current: | 300A (Max 5 seconds) |
Max Charge Current: | 200A |
Charge Temperature Range: | 32°F - 113°F (0°C - 45°C) |
Discharge Temperature Range: | -4°F - 140°F (-20°C - 60°C) |
Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
Storage Temperature Range (SoC >50%): | -4°F - 113°F (-20°C - 45°C) (Max 6 months) |
Weight: | 387 lb (175.5 kg) |
Depth: | 6.7 in (170 mm) |
Width: | 26.5 in (674 mm) |
Height: | 59.8 in (1520 mm) |
Max Connections: | Up to (16) parallel connections per control box |
Protection Rating: | IP65 |
Communications: | CANBus / RS485 |
Downloads
Spec Sheet
User Manual
UL9540 Certification
Safety Data Sheet
Inverter Downloads
User Manual
Rapid ShutDown Certificate
UL1741 Certificate
IEEE1547 Certificate
