Description

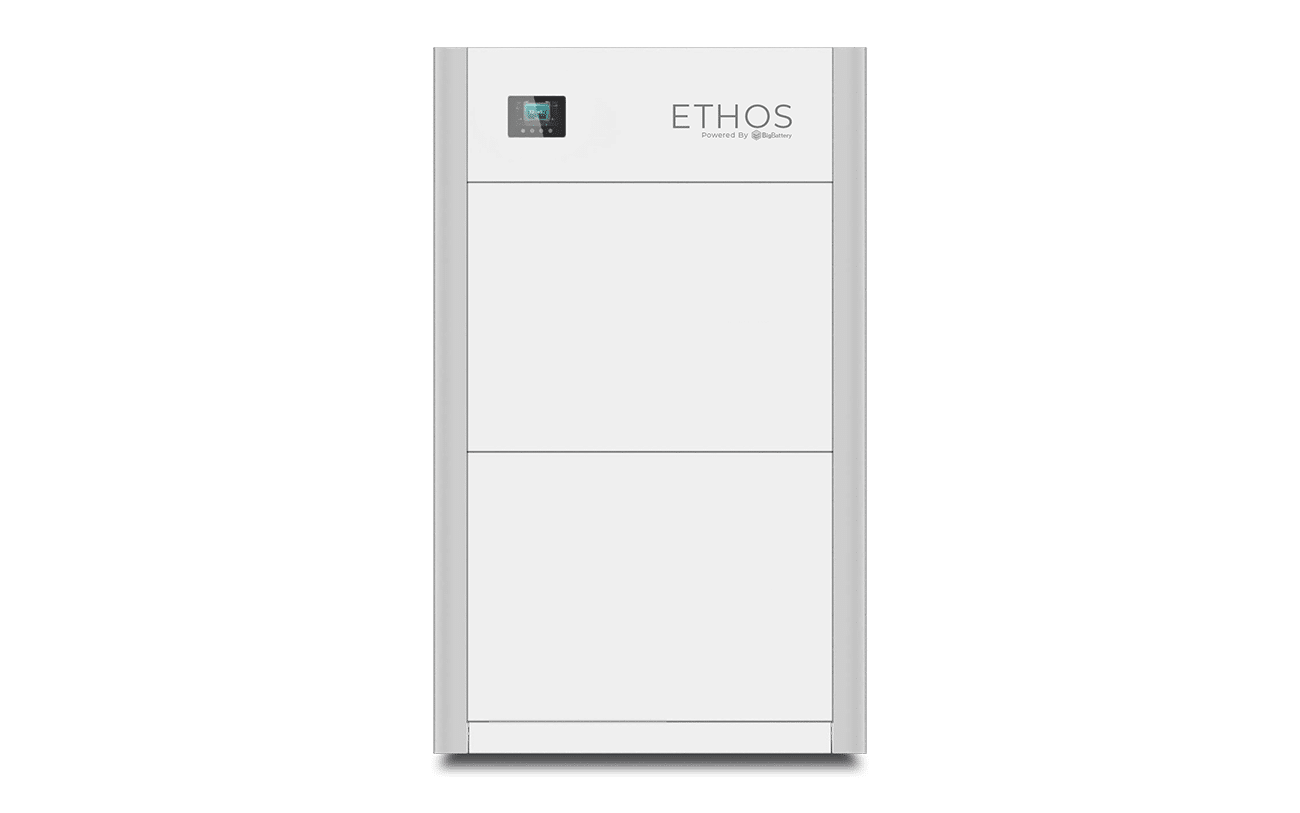

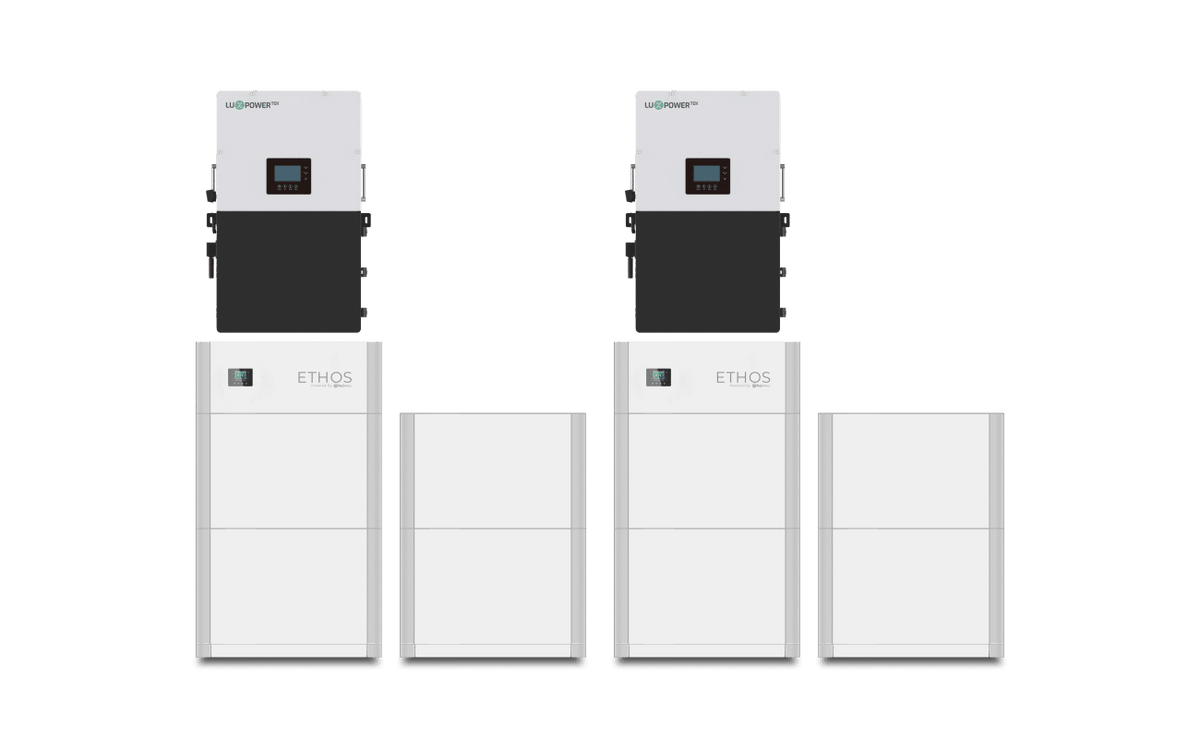

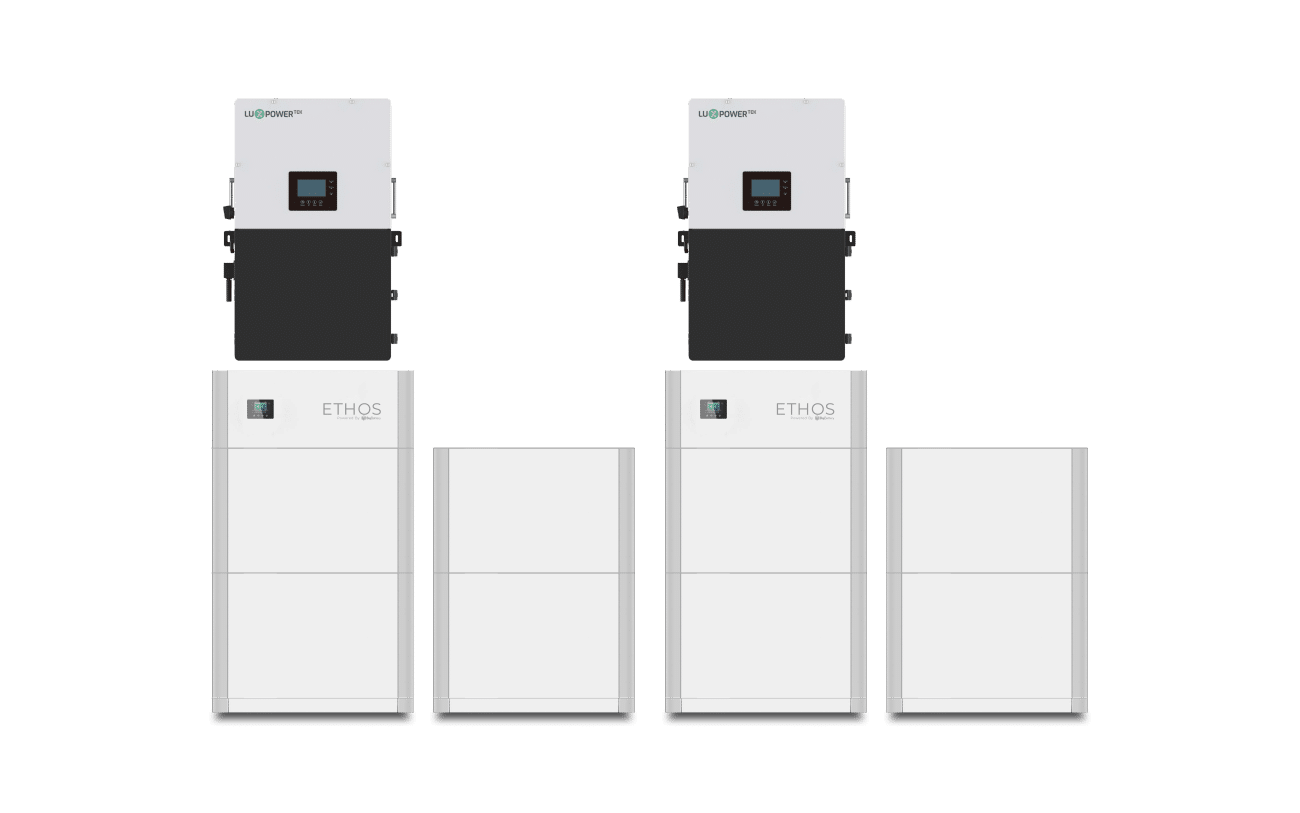

xIntroducing the 48V 40.9kWh ETHOS Power System – Your Premium Energy Solution
Discover the unparalleled capabilities of the 48V 40.9kWh ETHOS Power System, the epitome of energy storage and management excellence. Engineered to provide unmatched energy capacity and efficiency, this advanced power system ensures you have a reliable and sustainable energy source for your most demanding needs.
Key Features:
- Extraordinary Capacity: With a remarkable 40.9kWh capacity, the ETHOS Power System delivers abundant energy to power your entire home or business.
- Exceptional Efficiency: Experience substantial energy savings and optimized energy utilization, reducing your overall utility expenses.
- Uninterrupted Power: Rely on seamless power supply, even during unexpected outages, to keep your essential equipment running flawlessly.
- Eco-Friendly: Contribute to a greener future by reducing your carbon footprint through the use of clean energy solutions.
- User-Centric Interface: Effortlessly monitor and manage your energy consumption with an intuitive and user-friendly interface.
Elevate your energy infrastructure with the 48V 40.9kWh ETHOS Power System and enjoy the pinnacle of reliability, efficiency, and user-friendly energy solutions for all your power requirements.
Single Stack Technical Specs
| SKU: | KIT0960 |
| System Voltage: | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 10.24kWh |
| Ah Capacity: | 200Ah |
| Charging Voltage Range: | 55.6 - 57V |
| Max Charge Voltage: | 57V |
| Operating Voltage Range: | 48 – 57V |
| Suggested Low Voltage Cutoff: | 48 – 50.8V |
| BMS Cutoff Range: | 42 - 47V |
| Cell Configuration: | 16S 2P |
| Max Continuous Discharge Current: | 250A |
| Max Continuous Power: | 12800W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 200A |
| Charge Temperature Range: | 32°F - 113°F (0°C - 45°C) |
| Discharge Temperature Range: | -4°F - 140°F (-20°C - 60°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range (SoC >50%): | -4°F - 113°F (-20°C - 45°C) (Max 6 months) |
| Weight: | 273 lb (123.8 kg) |
| Depth: | 6.7 in (170 mm) |
| Width: | 26.5 in (674 mm) |
| Height: | 43.3 in (1100 mm) |
| Max Connections: | Up to (16) parallel connections per control box |
| Protection Rating: | IP65 |
| Communications: | CANBus / RS485 |
Downloads
Spec Sheet
User Manual
UL9540 Certification
Safety Data Sheet

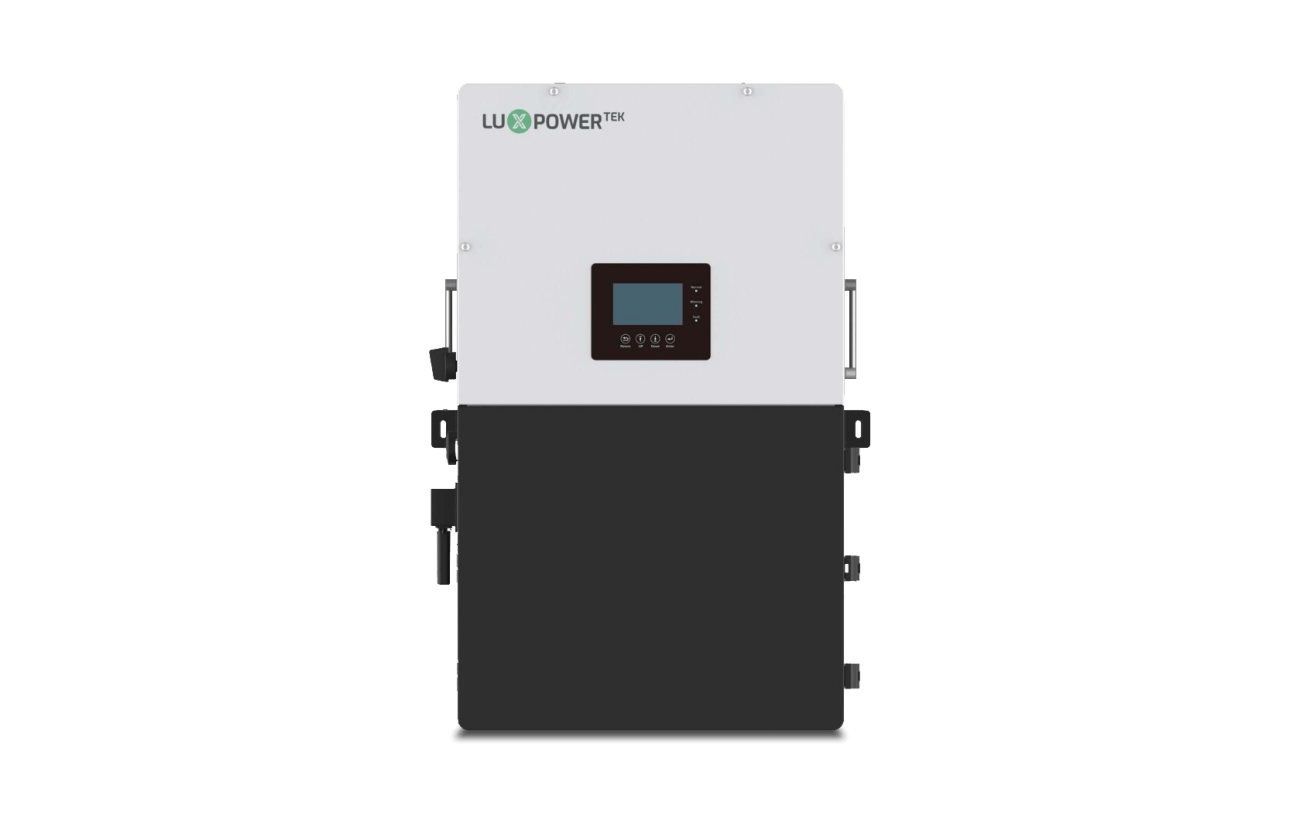

Inverter Downloads
User Manual
Rapid ShutDown Certificate
UL1741 Certificate
IEEE1547 Certificate
