Description

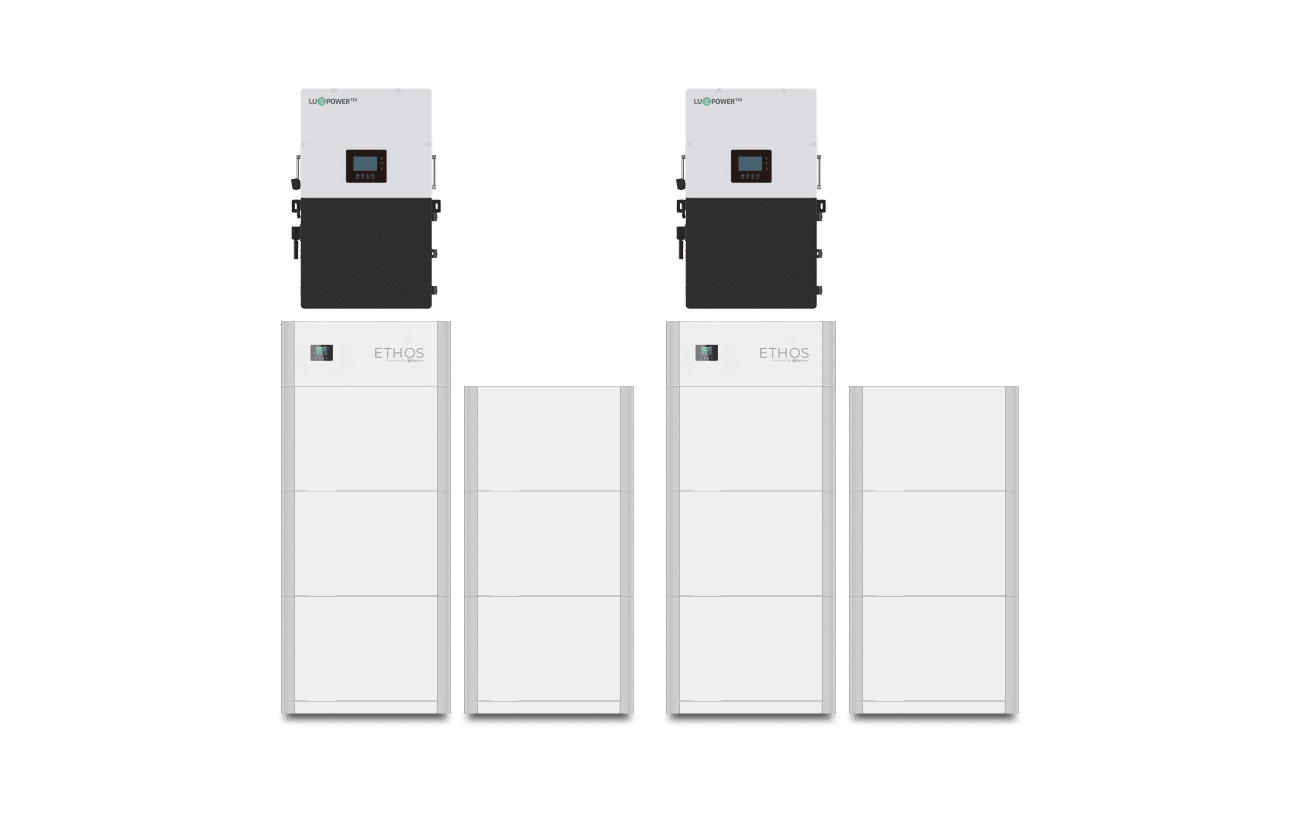

xIntroducing the 48V 60kWh ETHOS Power System – Your Supreme Energy Solution
Meet the 48V 60kWh ETHOS Power System, the pinnacle of energy storage and management excellence. This advanced power system is engineered to provide you with unmatched energy capacity and efficiency, ensuring you have a reliable and sustainable energy source for even the most demanding applications.
Key Features:
- Exceptional Capacity: With an extraordinary 60kWh capacity, the ETHOS Power System offers an abundance of energy to cover all your energy-intensive needs.
- Superior Efficiency: Experience significant energy savings and optimized energy utilization, resulting in reduced utility costs.
- Uninterrupted Power: Rely on seamless power supply, even during unexpected outages, to keep your essential equipment running smoothly.
- Environmentally Responsible: Contribute to a cleaner planet by reducing your reliance on non-renewable energy sources and minimizing your carbon footprint.
- User-Friendly Interface: Effortlessly monitor and manage your energy consumption with an intuitive interface designed for user convenience.
Elevate your energy infrastructure with the 48V 60kWh ETHOS Power System and enjoy the pinnacle of reliability, efficiency, and user-friendly energy solutions, designed to meet your most critical power requirements.
Single Stack Technical Specs
| SKU: | KIT0961 |
| System Voltage: | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 15.36kWh |
| Ah Capacity: | 300Ah |
| Charging Voltage Range: | 55.6 - 57V |
| Max Charge Voltage: | 57V |
| Operating Voltage Range: | 48 – 57V |
| Suggested Low Voltage Cutoff: | 48 – 50.8V |
| BMS Cutoff Range: | 42 - 47V |
| Cell Configuration: | 16S 3P |
| Max Continuous Discharge Current: | 250A |
| Max Continuous Power: | 12800W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 200A |
| Charge Temperature Range: | 32°F - 113°F (0°C - 45°C) |
| Discharge Temperature Range: | -4°F - 140°F (-20°C - 60°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range (SoC >50%): | -4°F - 113°F (-20°C - 45°C) (Max 6 months) |
| Weight: | 387 lb (175.5 kg) |
| Depth: | 6.7 in (170 mm) |
| Width: | 26.5 in (674 mm) |
| Height: | 59.8 in (1520 mm) |
| Max Connections: | Up to (16) parallel connections per control box |
| Protection Rating: | IP65 |
| Communications: | CANBus / RS485 |
Downloads
Spec Sheet
User Manual
UL9540 Certification
Safety Data Sheet
Inverter Downloads
User Manual
Rapid ShutDown Certificate
UL1741 Certificate
IEEE1547 Certificate
