Description
xIntroducing the RICH SOLAR All in One Energy
The RICH SOLAR All in One Energy is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.
Features:
- Pure sine wave output
- Off-Grid application
- Programmable supply priority for PV, Battery or Grid
- User-adjustable battery charging current
- Battery independent design
- Multiple communication for USB, RS232, SNMP, Modbus, GPRS and Wi-Fi

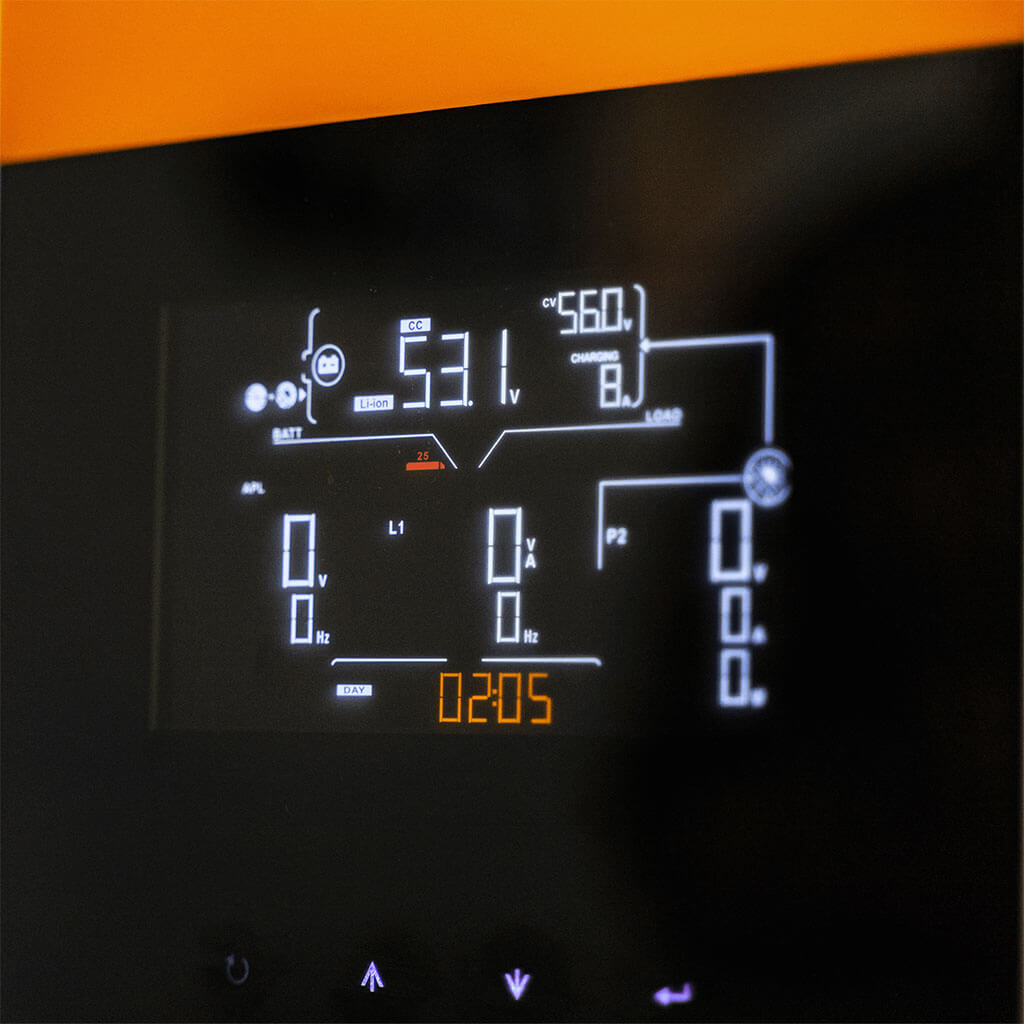

- Monitoring APP (Android and iOS) for real-time status display and parameter control
- Built-in 2 MPPT trackers and AC/Solar charger up to 120A
- Compatible with utility and generator
- Scalable Li-Ion battery expansion
The compact design of an All in One Energy Storage System makes it an attractive option for those with limited space, or for those who want a more discreet installation. It can also be easier to install and maintain compared to larger energy storage systems, which may require more extensive wiring and infrastructure.
High-capacity Battery Bank
The RICH SOLAR All in One Energy also features a high-capacity battery bank, which allows you to store excess energy generated by the solar panels for use during times when sunlight is not available, such as at night or on cloudy days. This means that you can continue to power your home or business with clean, renewable energy even when the sun is not shining.
Advanced Inverter Technology
The system's advanced inverter technology ensures that the electricity generated by the solar panels is converted into a form that is compatible with your home or business's electrical system, allowing you to power your appliances and devices without interruption.
Intelligent Charge Controller
The system's intelligent charge controller ensures that the battery bank is charged and discharged in the most efficient way possible, prolonging the lifespan of the batteries and maximizing their overall performance.
Endorsed by will Prowse
800k youtube Subscribers
Tech Specs
SPECIFICATIONS
| Model: | RS-A10 |
| Maximum PV Input Power: | 8000W |
| Rated Output Power: | 6500W |
| Maximum Charging Power: | 6500W |
PV INPUT (DC)
| MPPT Range @ Operating Voltage: | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage: | 250 VDC |
| Maximum Solar Charge Current: | 120A |
| Number of MPP Trackers / Maximum Input Current: | 2 / 2 x 18 A |
AC INPUT
| Acceptable Input Voltage Range: | 90-140 VAC (For Computers) |
| 80-140 VAC (For Home Appliances) | |
| Maximum AC Input Current: | 60A |
BATTERY MODE OUTPUT
| Nominal Output Voltage: | 120 VAC |
| Maximum Conversion Efficiency (DC/AC): | 93% |
BATTERY
| Nominal DC Voltage: | 48 VDC |
| Maximum Charging Current: | 120 A |
| Dimension: | (D x W x H): 8.4″ x 24.4″ x 19.7″ |
| Net Weight: | 99 lb |
| Capacity: | 5120Wh |
| Nominal Voltage: | 51.2VDC |
| Full Charge Voltage(FC): | 56V |
| Full Discharge Voltage(FD): | 42V |
| Typical Capacity: | 100 Ah |
| Max Continuous Discharging Current: | 120A |
| Max Discharging Current: | 192A at 1 min |
| Protection: | BMS, Breaker |
| Float Charge Voltage: | 52.5V |
| Charge Current: | 20A (0.2C) |
| Maximum Charge current: | 50A (0.5C) |
| Standard Charge method: | 0.2C CC (Constant current) charge to FC,CV (Constant voltage FC) charge till charge current decline to <0.05C |
| Inner Resistance: | ≤20m ohm |
ALL IN ONE SYSTEM PHYSICAL
| System Dimension (D X W X H): | 19.7″ x 26″ x 49.2″ |
| Net Weight: | 287 lb |
STANDARD
| Compliance Safety: | IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B |
User Manual
ALL IN ONE ENERGY STORAGE SYSTEM
