Description
xProduct Description:

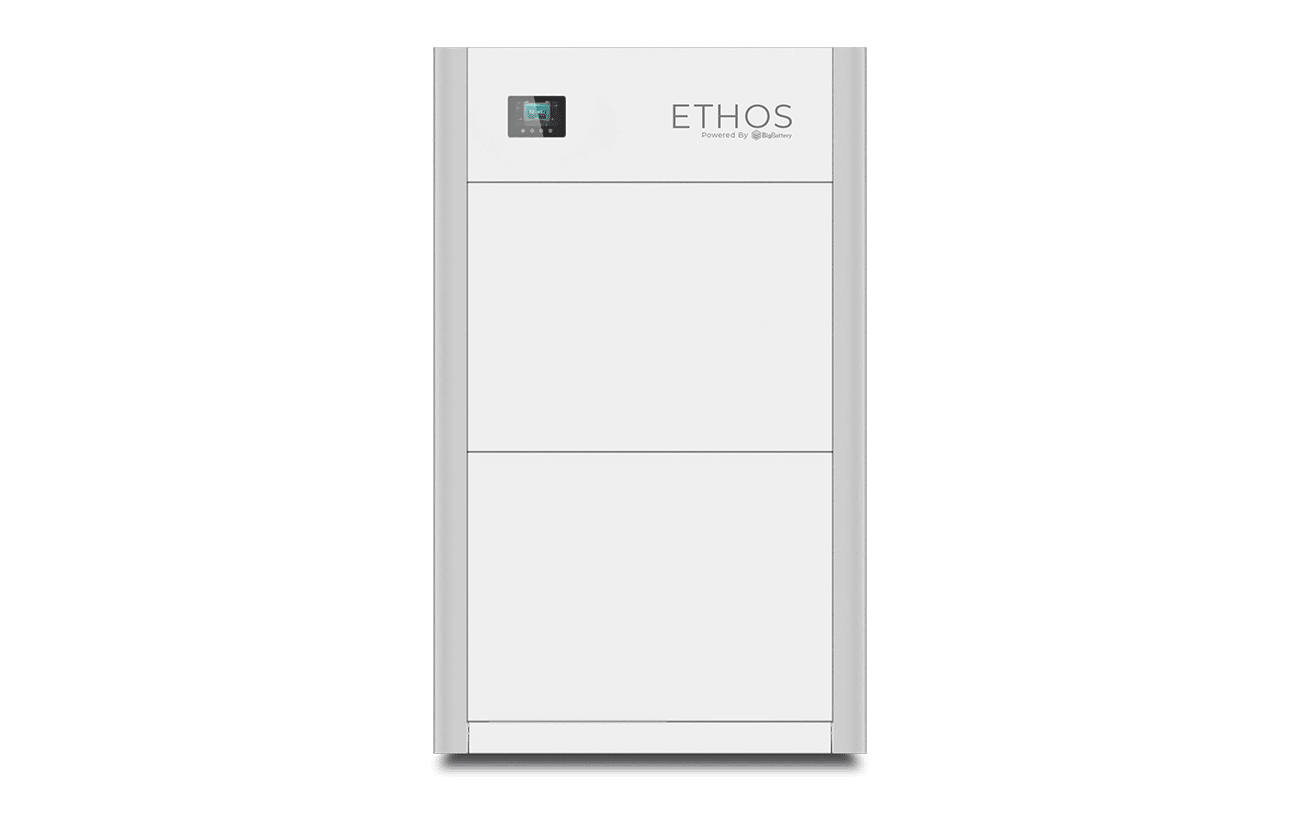

Introducing the ETHOS 10.2kWh battery, a dynamic energy storage solution designed for both versatility and high capacity. This configuration, featuring two modules, provides a robust power source with the flexibility to suit various energy demands, making it ideal for residential and commercial applications.
Key Features:
-
Modular Design: The ETHOS battery system is designed with modularity in mind, allowing you to configure your energy storage to meet specific requirements. The "2 Module" setup offers a total capacity of 10.2kWh, providing ample power reserves.
-
Scalable Energy Storage: Start with two modules and easily expand your energy capacity as needed, ensuring your power solution grows alongside your energy demands.
-
Lithium Iron Phosphate (LiFePO4) Technology: Benefit from the safety, longevity, and consistent performance of LiFePO4 technology, making the ETHOS a reliable choice for demanding applications.
-
Versatile Applications: Whether you're looking to power a residential solar system, a commercial backup power setup, or other energy-intensive applications, the ETHOS offers the flexibility to adapt to your unique needs.
-
Effortless Integration: Designed for seamless integration into various energy systems, the ETHOS simplifies installation and ensures compatibility with your existing setup.
-
Durability and Longevity: Crafted for durability and long-lasting performance, the ETHOS is engineered to withstand daily use and deliver reliable energy storage over many charge and discharge cycles.
Unlock the potential of dynamic energy storage with the ETHOS 10.2kWh (2 Module) battery configuration. Experience the freedom to adapt your energy capacity to match your evolving needs while enjoying the benefits of safety, efficiency, and reliability. Choose ETHOS for a versatile and dependable energy solution.
Tech Specs
| SKU: | KIT0949 |
| System Voltage: | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 10.24kWh |
| Ah Capacity: | 200Ah |
| Charging Voltage Range: | 55.6 - 57V |
| Max Charge Voltage: | 57V |
| Operating Voltage Range: | 48 – 57V |
| Suggested Low Voltage Cutoff: | 48 – 50.8V |
| Cell Configuration: | 16S 2P |
| Max Continuous Discharge Current: | 200A |
| Max Continuous Power: | 10240W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 200A |
| Charge Temperature Range: | 32°F - 113°F (0°C - 45°C) |
| Discharge Temperature Range: | -4°F - 140°F (-20°C - 60°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range (SoC >50%): | -4°F - 113°F (-20°C - 45°C) (Max 6 months) |
| Weight: | 273 lb (123.8 kg) |
| Depth: | 6.7 in (170 mm) |
| Width: | 26.5 in (674 mm) |
| Height: | 43.3 in (1100 mm) |
| Max Connections: | Up to (16) parallel connections per control box |
| Protection Rating: | IP65 |
| Communications: | CANBus / RS485 |
| Certifications: | UL9540, UL9540a, UL1973, & UN38.3 |
Designed For 48V Applications
