xProduct Description:

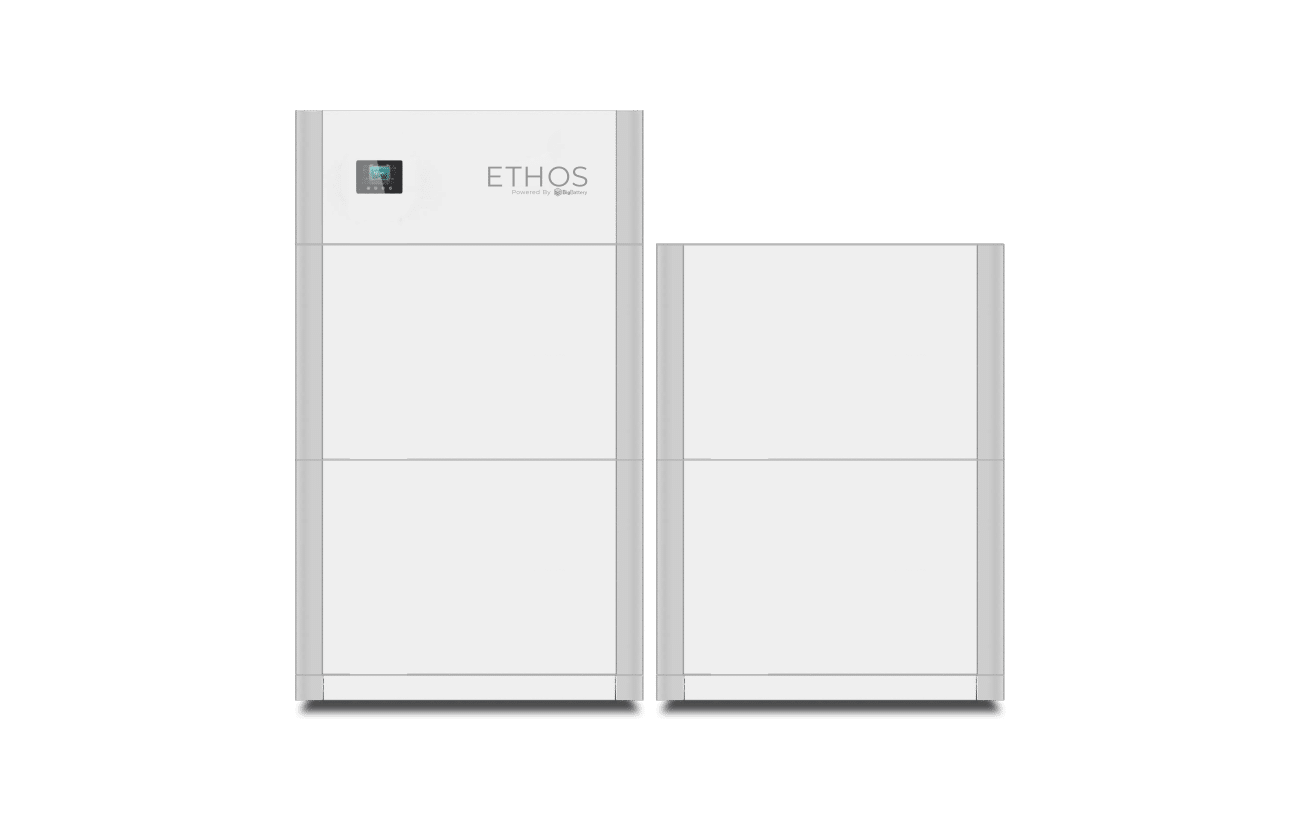

Introducing the ETHOS 20.2kWh battery, a powerhouse energy storage solution designed for unmatched capacity and versatility. Configured with four modules, this system offers a substantial energy reserve, making it ideal for large-scale residential and commercial applications.
Key Features:
-
Modular Flexibility: The ETHOS battery system's modular design empowers you to tailor your energy storage to meet your precise requirements. With the "4 Module" configuration, you gain access to a remarkable total capacity of 20.2kWh, ensuring an extensive power buffer.
-
Scalable Energy Capacity: Start with four modules and effortlessly expand your energy capacity as your energy needs grow, providing a scalable and adaptable energy solution.
-
LiFePO4 Technology: Benefit from the safety, longevity, and consistent performance of Lithium Iron Phosphate (LiFePO4) technology, ensuring reliability for the most demanding applications.
-
Versatile Applications: Whether you're powering a large residential complex, a commercial facility, or an energy-intensive project, the ETHOS system seamlessly adapts to diverse applications, delivering robust and dependable energy storage.
-
Effortless Integration: Designed for straightforward integration into various energy systems, the ETHOS simplifies installation and guarantees compatibility with your existing setup.
-
Durability and Trustworthiness: Crafted for durability and long-term performance, the ETHOS is engineered to withstand daily use and provide unwavering energy storage over countless charge and discharge cycles.
Unlock the potential of substantial energy storage with the ETHOS 20.2kWh (4 Module) battery configuration. Customize your energy capacity to match your evolving needs while experiencing the benefits of safety, efficiency, and reliability. Choose ETHOS for a powerful and adaptable energy solution.
Single Stack Tech Specs
| SKU: | KIT0951 |
| System Voltage: | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 10.24kWh |
| Ah Capacity: | 200Ah |
| Charging Voltage Range: | 55.6 - 57V |
| Max Charge Voltage: | 57V |
| Operating Voltage Range: | 48 – 57V |
| Suggested Low Voltage Cutoff: | 48 – 50.8V |
| Cell Configuration: | 16S 2P |
| Max Continuous Discharge Current: | 200A |
| Max Continuous Power: | 10240W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 200A |
| Charge Temperature Range: | 32°F - 113°F (0°C - 45°C) |
| Discharge Temperature Range: | -4°F - 140°F (-20°C - 60°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range (SoC >50%): | -4°F - 113°F (-20°C - 45°C) (Max 6 months) |
| Weight: | 273 lb (123.8 kg) |
| Depth: | 6.7 in (170 mm) |
| Width: | 26.5 in (674 mm) |
| Height: | 43.3 in (1100 mm) |
| Max Connections: | Up to (16) parallel connections per control box |
| Protection Rating: | IP65 |
| Communications: | CANBus / RS485 |
| Certifications: | UL9540, UL9540a, UL1973, & UN38.3 |
Designed For 48V Applications
Spec Sheet Download
User Manual Download
UL9540 Certification Download
Safety Data Sheet Download
