Description
xProduct Description:

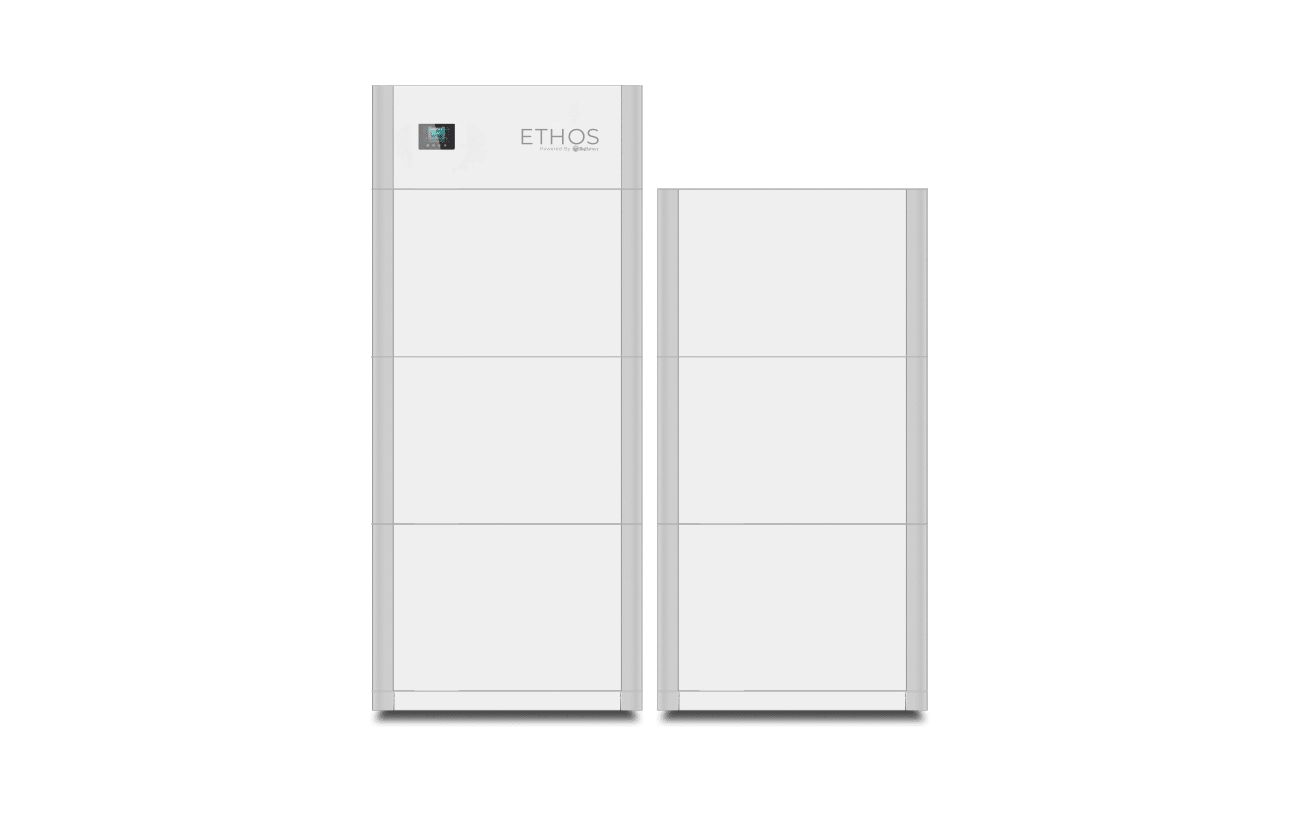

Experience unparalleled energy capacity with the ETHOS 30.7kWh battery, a robust and versatile energy storage solution designed for the most demanding power needs. Configured with six modules, this system provides an exceptional energy reserve suitable for large-scale residential and commercial applications.
Key Features:
-
Modular Powerhouse: The ETHOS battery system's modular design empowers you to tailor your energy storage to precise specifications. With the "6 Module" configuration, you gain access to an impressive total capacity of 30.7kWh, ensuring an extensive power reservoir.
-
Scalable Energy Solution: Start with six modules and effortlessly expand your energy capacity as your energy requirements evolve, providing an adaptable and future-proof energy solution.
-
LiFePO4 Technology: Benefit from the safety, longevity, and consistent performance of Lithium Iron Phosphate (LiFePO4) technology, ensuring unwavering reliability for the most demanding applications.
-
Versatile Applications: Whether you're powering a large residential complex, a commercial facility, or an energy-intensive project, the ETHOS system effortlessly adapts to diverse applications, delivering robust and dependable energy storage.
-
Effortless Integration: Designed for straightforward integration into various energy systems, the ETHOS simplifies installation and ensures compatibility with your existing setup.
-
Durability and Trustworthiness: Crafted for durability and long-term performance, the ETHOS is engineered to withstand daily use and provide unwavering energy storage over countless charge and discharge cycles.
Elevate your energy storage capabilities to unprecedented levels with the ETHOS 30.7kWh (6 Module) battery configuration. Customize your energy capacity to match your evolving needs while experiencing the benefits of safety, efficiency, and reliability. Choose ETHOS for a powerful and adaptable energy solution.
Single Stack Tech Specs
| SKU: | KIT0953 |
| System Voltage: | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 15.36kWh |
| Ah Capacity: | 300Ah |
| Charging Voltage Range: | 55.6 - 57V |
| Max Charge Voltage: | 57V |
| Operating Voltage Range: | 48 – 57V |
| Suggested Low Voltage Cutoff: | 48 – 50.8V |
| Cell Configuration: | 16S 3P |
| Max Continuous Discharge Current: | 250A |
| Max Continuous Power: | 12800W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 200A |
| Charge Temperature Range: | 32°F - 113°F (0°C - 45°C) |
| Discharge Temperature Range: | -4°F - 140°F (-20°C - 60°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range (SoC >50%): | -4°F - 113°F (-20°C - 45°C) (Max 6 months) |
| Weight: | 387 lb (175.5 kg) |
| Depth: | 6.7 in (170 mm) |
| Width: | 26.5 in (674 mm) |
| Height: | 59.8 in (1520 mm) |
| Max Connections: | Up to (16) parallel connections per control box |
| Protection Rating: | IP65 |
| Communications: | CANBus / RS485 |
| Certifications: | UL9540, UL9540a, UL1973, & UN38.3 |
Designed For 48V Applications
Spec Sheet Download
User Manual Download
UL9540 Certification Download
Safety Data Sheet Download
