Description

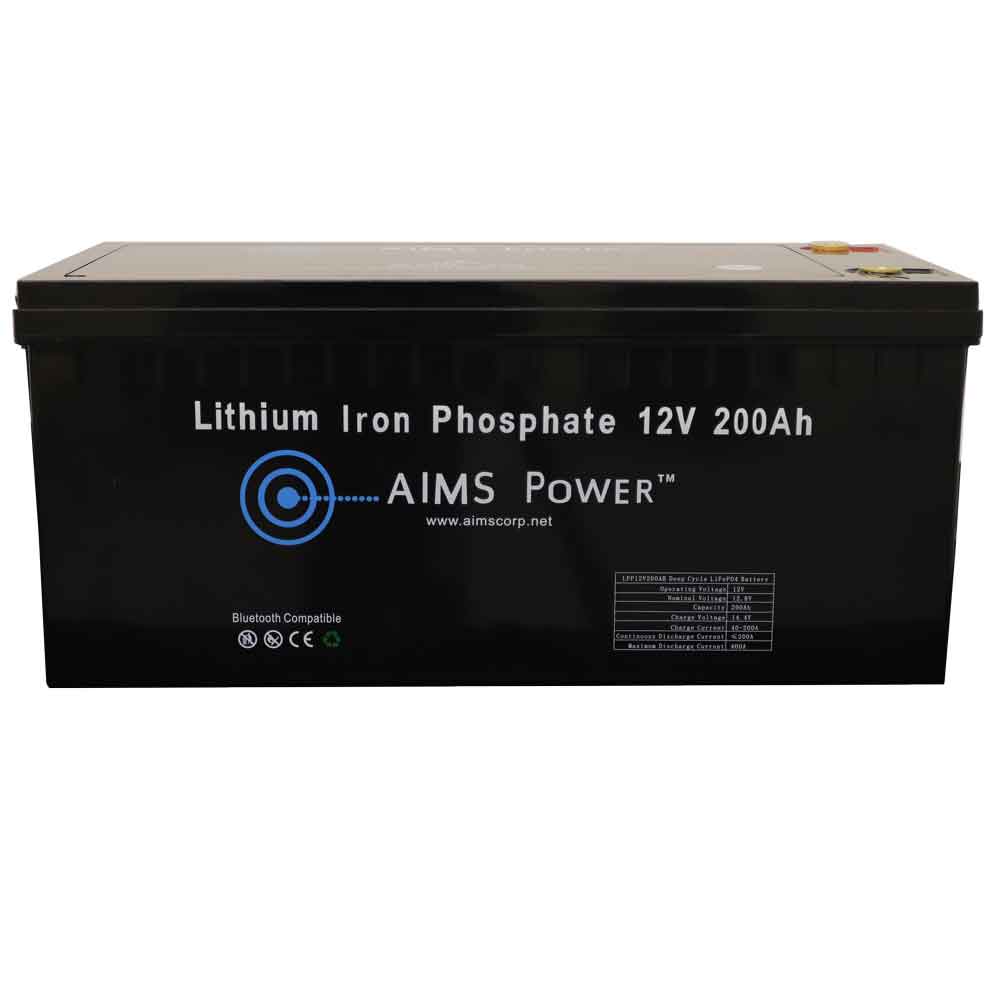

xThe Lithium 12V 200Ah LiFePO4 Battery with Bluetooth Monitoring from AIMS Power is a member of our new battery product line of LiFePO4 batteries. The LiFePO4 batteries maintain constant output voltage, providing more efficient power. This allows the cell to deliver virtually full power until it is fully discharged without harming the battery. This advanced battery can greatly simplify or even eliminate the need for voltage regulation circuitry.
Compared to other battery technologies, this battery has a much longer cycle life capacity and is easier to maintain. It has better thermal and chemical stability, which improves battery safety.
It hasn’t sacrificed performance at the expense of safety, however. This battery is packed with power. Mountable in any orientation, it small and is light and easy to handle, making it adaptable and versatile for a variety of installations. It will easily use the same space as your existing 12V battery.
With proper care, this battery can last a decade or more. It is backed by a 10-year warranty and a battery cell IEC rating that specifies requirements and tests for the safe operation of secondary lithium cells and batteries used in industrial applications including stationary applications.
This innovative battery can replace lead acid, AGM or gel battery applications in RVs, golf carts and boats. It’s also great for commercial vehicles, off-grid backup power and much more. This deep-cycle battery is not intended to replace starting batteries.
** Google and Apple app is AIMSBATB.
If you own an AIMS lithium battery and the part number is LFP12V200B the link to the app is below.
- Extremely high number of charge/discharge cycles
- > 10 Year lifespan with proper maintenance
- Bluetooth monitoring
- 10 year warranty
- Wide operating temperature range
- Unsurpassed high temperature performance
- Green energy without metal contaminant
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- BMS safety protection. Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
- Convenient carry handles
- Lightweight
- 50, 100 & 200 Ah models available
- Short circuit protected
- Physical damage to battery case will not cause fire
- Excessive thermal exposure will not cause a fire
- Able to withstand over-charge/over-discharge without damage to the battery
- Sophisticated Battery Management System (BMS)
- IP66 rated
| Electrical Specifications | LFP12V200B | ||
| Nominal Voltage | 12.8V | ||
| Nominal Capacity (at .5C, 77°F) | 200Ah | ||
| Minimum Capacity (at .5C, 77°F) | 190Ah | ||
| Expected Cycle Life | >4000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD | ||
| Operating Specifications | |||
| Charge Method | Smart charger, constant current, constant voltage | ||
| Charge Voltage Range (Max 14.6V) | 14.4 -14.6V | ||
| Continuous Charge Current | 200A Max | ||
| Charge Temperature | 32° F to 113° F | ||
| Continuous Discharge Current | 200A Max | ||
| Peak Instant Discharge Current (10 secs) | 400A Max | ||
| Over Voltage Shutdown | 15.2 +/-.5V | ||
| Discharge Cut-off Voltage | 8V =/- .5V | ||
| Discharge Temperature | -4° F to 149° F includes low temp disconnect protection | ||
| Storage Temperature | -4° F to 113° F | ||
| Self Disharge (stored at 50% SOC) | < 3%/month | ||
| Watt hours | 2560 watt hours | ||
| Physical Specifications | |||
| Battery Dimensions | 20.5″L x 10″W x 9.25″H | ||
| Weight | 62 lb | ||
| Shipping Weight62 | 64 lb | ||
| Group Size | 4D | ||
| Battery post size | 5/16″ 8M 1.7″ long | ||
| BMS Operation | |||
| Over Charge Protection | Over charge detection voltage: 3.8 +/- .05V | ||
| Over charge detection delay time: .96 – 1.4s | |||
| Over charge release voltage: 3.60 +/-.05V | |||
| Maximum charge voltage: 3.65 +/-.05V | |||
| Over Discharge Protection | Over discharge detection voltage: 2.0V +/- .05V | ||
| Over discharge detection delay time: .96 – 1.4s | |||
| Over discharge release voltage: 2.3V +/- .10V | |||
| Over Current Protection | Over current detection delay time: 9 +/- 2ms | ||
| Over current release condition: Cut load | |||
| Polarity Reverse Protection | Yes | ||
| Short Circuit Protection | Yes | ||
| UPC | 840271005829 | ||
| Warranty | 10 Yr Manufacturer Defect. | ||
