Features
Specifications

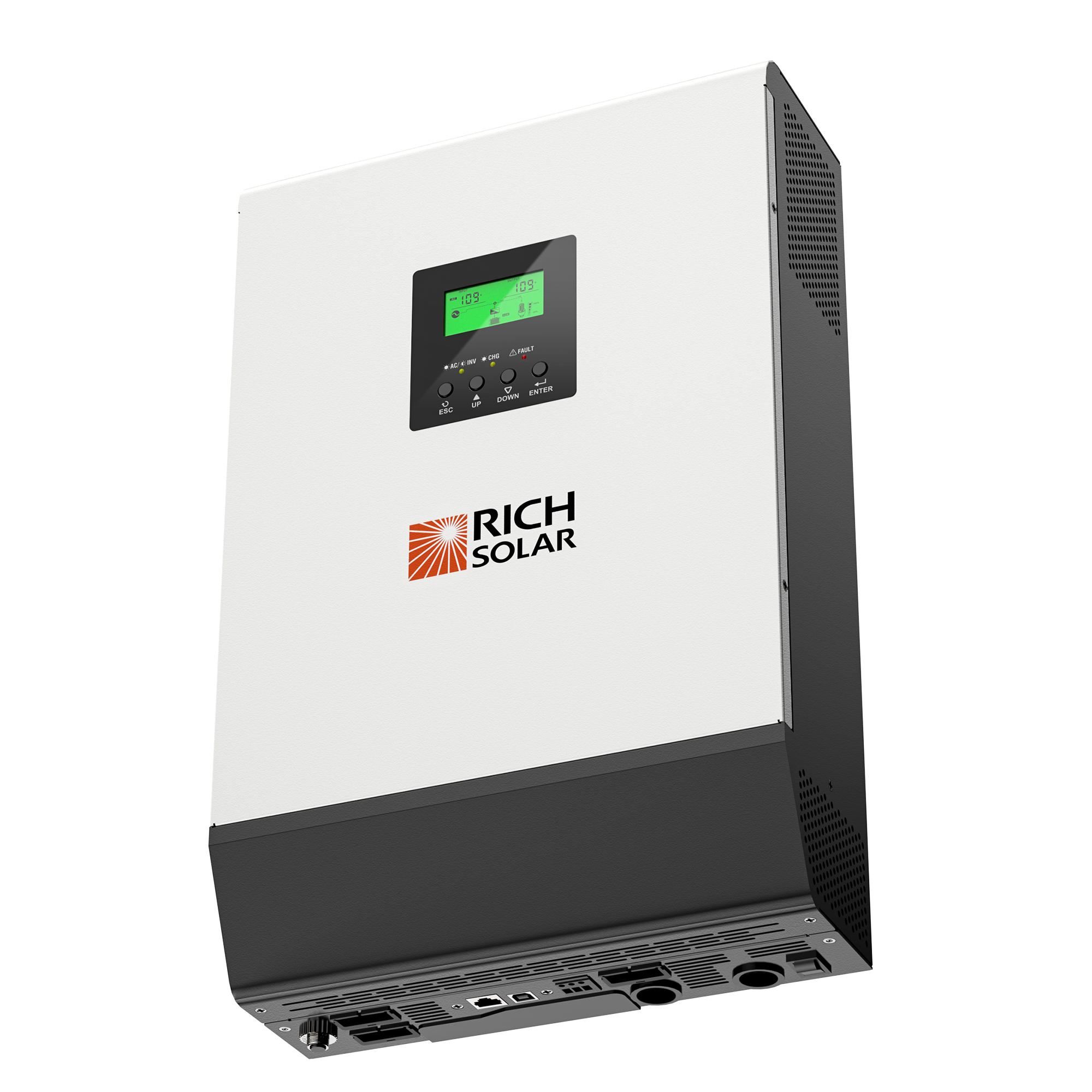

Model: RS-H2424
GRID OUTPUT (AC)
Nominal Output Voltage: 101/110/120 VAC
Rated Output Power: 2400W
Output Voltage Range:
89~111 VAC @ 101 VAC output
97~121 VAC @ 110 VAC output
106~132 VAC @ 120 VAC output
Output Frequency Range:
47.5~51.5Hz @ 50Hz
57.5~61.5Hz @ 60Hz
Nominal Output Current:
29.7A @ 101Vac
27.2A @ 110Vac
25.0A @ 120Vac
Power Factor: >0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC): 85%
OFF-GRID, HYBRID OPERATION
AC Start-up Voltage / Auto Restart Voltage: 60 - 70 VAC / 90 VAC
Acceptable Input Voltage Range: 65-140 VAC or 85-140 VAC
Maximum AC Input Current: 40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage: 101/110/120 VAC
Rated Output Power: 2400W / 3000VA
Output Waveform: Pure Sine Wave
Efficiency (DC to AC): 90%
BATTERY & CHARGER
Nominal DC Voltage: 24 VDC
Maximum Charging Current (from Grid): 60A
Maximum Charging Current (from PV): 80A
Maximum Charging Current: 140A
PHYSICAL
Dimension, D X W X H (mm): 120 x 295 x 468
Net Weight (kgs): 11
INTERFACE
Parallel-able: Yes. Single phase, Split phase, Three phase
External Safety Box (Optional): Yes
Communication: USB or RS-232/Dry contact
ENVIRONMENT
Humidity: 0 ~ 90% RH (No condensing)
Operating Temperature: 0 to 50°C
